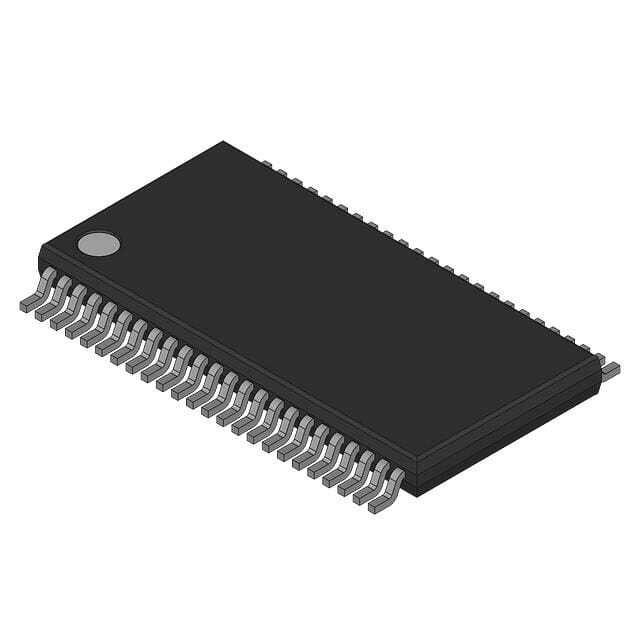

CY74FCT16244TPAC

SKU: 18480

Manufacturer: Texas Instruments

Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Logic Family	FCT
Logic Function	Buffer/Line Driver
Number of Elements per pcs	4
Number of Channels per Chip	16
Number of Inputs per Chip	16
Number of Input Enables per Chip	0
Number of Outputs per Chip	16
Number of Output Enables per Chip	4 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	6.5@5V
Absolute Propagation Delay Time (ns)	8
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	64
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Typical Quiescent Current (uA)	5
Maximum Quiescent Current (uA)	500
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Standard Package Method	SOP
Original Package	TSSOP
Pin Count	48
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.6(Max)
Package Width	6.2(Max)
PCB changed	48
