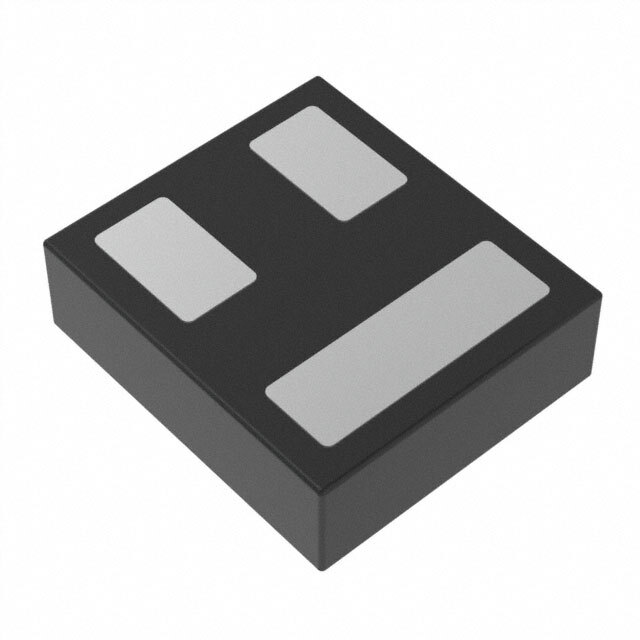

CSD25501F3

SKU: 131641

Manufacturer: Texas Instruments

Trans MOSFET P-CH 20V 3.6A 3-Pin LGA T/R

121360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.40
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	-20
Maximum Continuous Drain Current (A)	3.6
Maximum Drain Source Resistance (mOhm)	76@4.5V
Typical Gate Charge @ Vgs (nC)	1.02@4.5V
Typical Input Capacitance @ Vds (pF)	295@10V
Maximum Power Dissipation (mW)	500
Typical Fall Time (ns)	945
Typical Rise Time (ns)	428
Typical Turn-Off Delay Time (ns)	1154
Typical Turn-On Delay Time (ns)	474
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	LGA
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.2
Package Length	0.6
Package Width	0.7
