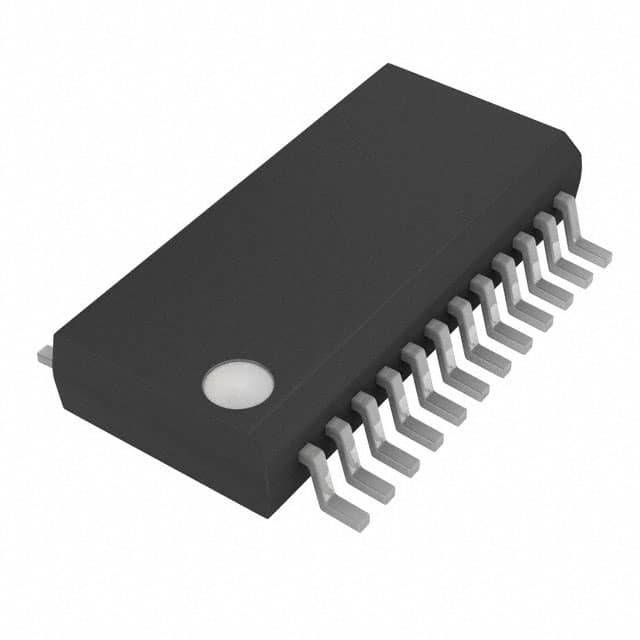

CDC5801ADBQR

SKU: 136336

Manufacturer: Texas Instruments

Clock Generator 19MHz to 125MHz-IN 500MHz-OUT 24-Pin SSOP T/R

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Outputs per Chip	1
Clock Input Frequency (MHz)	19 to 125
Maximum Output Frequency (MHz)	500
Typical Duty Cycle (%)	75(Max)
Input Logic Level	LVTTL
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	1400
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	24
