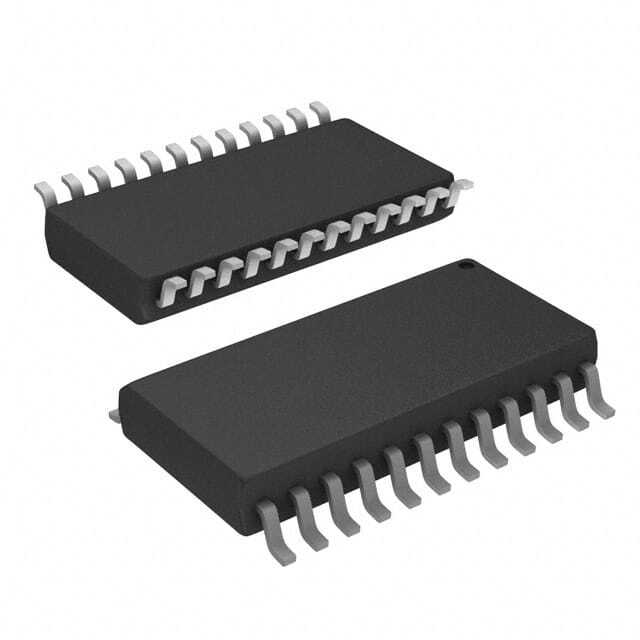

CD74HCT154M96

SKU: 11122

Manufacturer: Texas Instruments

Decoder/Demultiplexer Single 4-to-16 24-Pin SOIC T/R

260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	HCT
Logic Function	Decoder/Demultiplexer
Demultiplexing Capability	1-of-16
Number of Elements per pcs	1
Number of Element Inputs	4
Number of Input Enables per Element	2
Number of Element Outputs	16
Number of Output Enables per Element	0
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	35@4.5V
Absolute Propagation Delay Time (ns)	53
Process Technology	CMOS
Maximum Low Level Output Current (mA)	4
Maximum High Level Output Current (mA)	-4
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.008
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tape and Reel
Pin Count	24
Original Package	SOIC
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
