CD74ACT652EN Texas Instruments

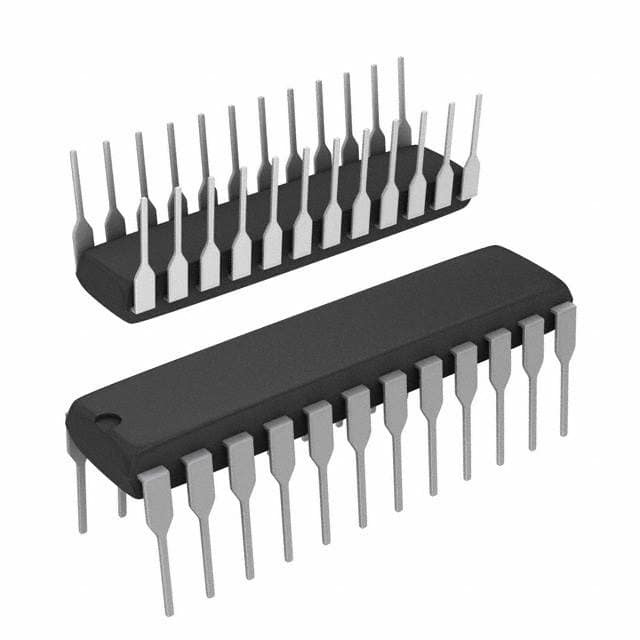

CD74ACT652EN

SKU: 11106

Manufacturer: Texas Instruments

Bus XCVR Single 8-CH 3-ST 24-Pin PDIP Tube

Request Free Samples

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	ACT
Logic Function	Bus Transceiver/Register
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	2
Number of Output Enables per Element	1 Low/1 High
Number of Input Enables per Element	0
Number of Direction Control Inputs	0
Bus Hold	No
Triggering Type	Positive-Edge
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	15.5
Maximum Propagation Delay Time @ Maximum CL (ns)	15.5@5V
Propagation Delay Test Condition (pF)	50
Process Technology	CMOS
Input Level	TTL
Output Level	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Maximum Quiescent Current (uA)	8
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Standard Package Method	DIP
Original Package	PDIP
Pin Count	24
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	32.04(Max)
Package Width	7.11(Max)
PCB changed	24
