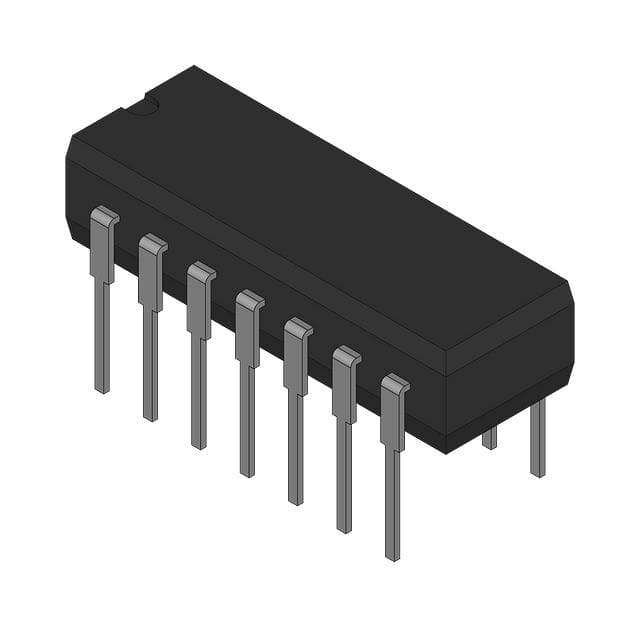

CD4541BF

SKU: 23110

Manufacturer: Texas Instruments

Programmable Timer Single -55°C 125°C 14-Pin CDIP Tube

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Programmable
Number of Internal Timers	1
Absolute Propagation Delay Time (ns)	18000
Process Technology	CMOS
Maximum Propagation Delay Time @ Maximum CL (ns)	18000@5V
Output Logic Level	HTL
Maximum High Level Output Current (mA)	-12.6(Min)
Maximum Low Level Output Current (mA)	12.6(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Maximum Quiescent Current (mA)	0.1
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	CDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.94(Max)
Package Width	7.19(Max)
PCB changed	14
