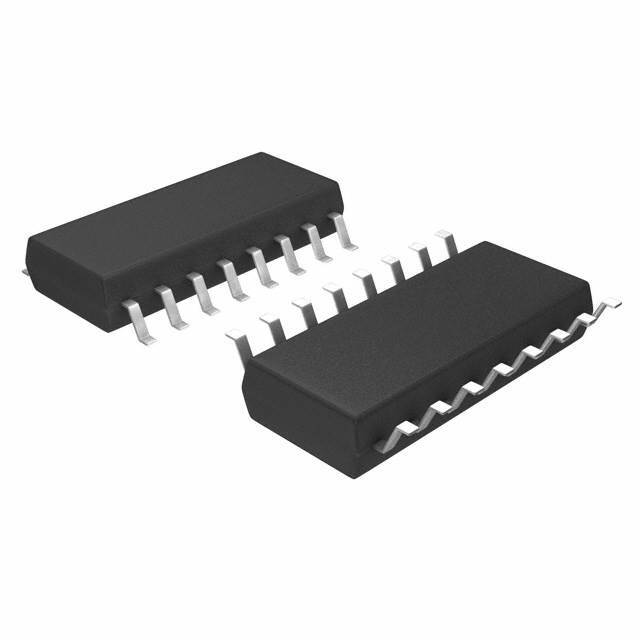

CD4502BNSR

SKU: 129202

Manufacturer: Texas Instruments

Buffer/Driver 6-CH Inverting 3-ST CMOS 16-Pin SOP T/R

2350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	CD4000
Logic Function	Buffer/Driver
Number of Elements per pcs	1
Number of Channels per Chip	6
Number of Inputs per Chip	6
Number of Input Enables per Chip	1 Low
Number of Outputs per Chip	6
Number of Output Enables per Chip	1 Low
Bus Hold	No
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	130@15V
Absolute Propagation Delay Time (ns)	380
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	25.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.04
Maximum Quiescent Current (uA)	20
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	16
Original Package	SOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	16
