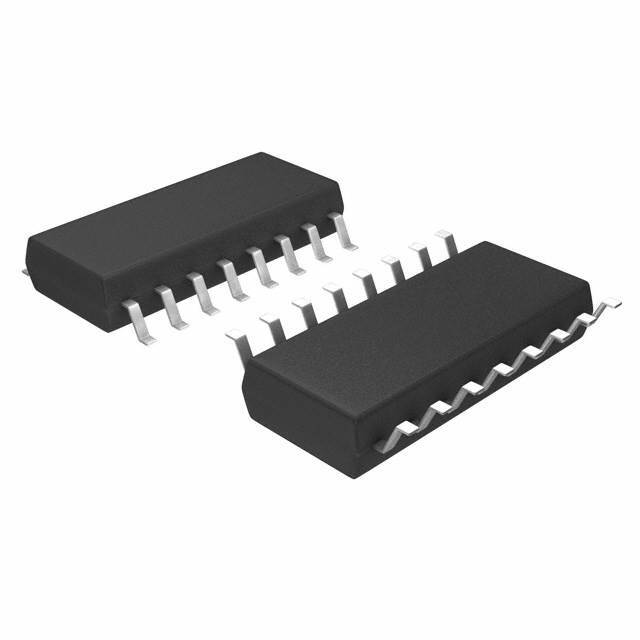

CD4060BNSR

SKU: 150518

Manufacturer: Texas Instruments

Counter/Divider Single 14-Bit Binary UP 16-Pin SOP T/R

2320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Binary
Logic Family	CD4000
Logic Function	Counter/Divider
Operation Mode	UP Counter
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	10
Number of Stages	14
Direction Type	Uni-Directional
Triggering Type	Negative-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	200@15V
Absolute Propagation Delay Time (ns)	740
Process Technology	CMOS
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	18
Maximum Quiescent Current (mA)	0.1
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tape and Reel
Pin Count	16
Original Package	SOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	16
