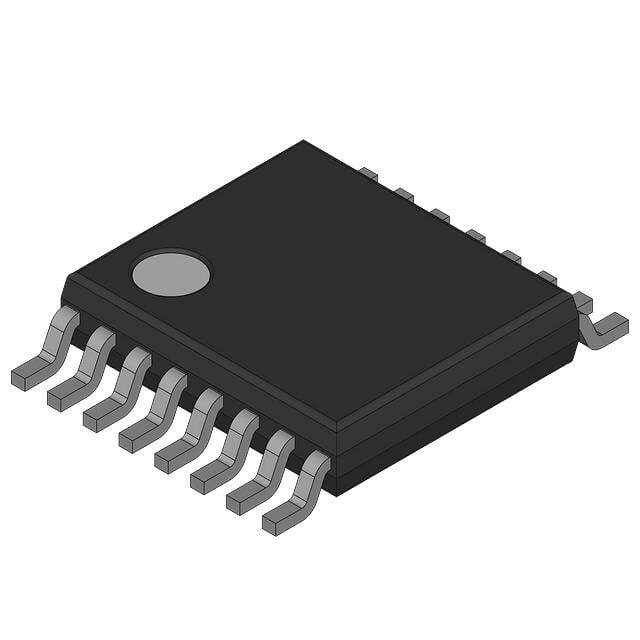

CD4051BPWR

SKU: 110159

Manufacturer: Texas Instruments

Analog Multiplexer Single 8:1 16-Pin TSSOP T/R

17690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	8
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	60@5V
Maximum Turn-On Time (ns)	720@5V
Maximum Turn-Off Time (ns)	450@5V
Maximum Frequency (25°C) @ Vcc (MHz)	20(Typ)@10V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	18
Maximum Single Supply Voltage (V)	20
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±9
Maximum On Resistance (Ohm)	1050@5V
Maximum On Resistance Range (Ohm)	>=1000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
