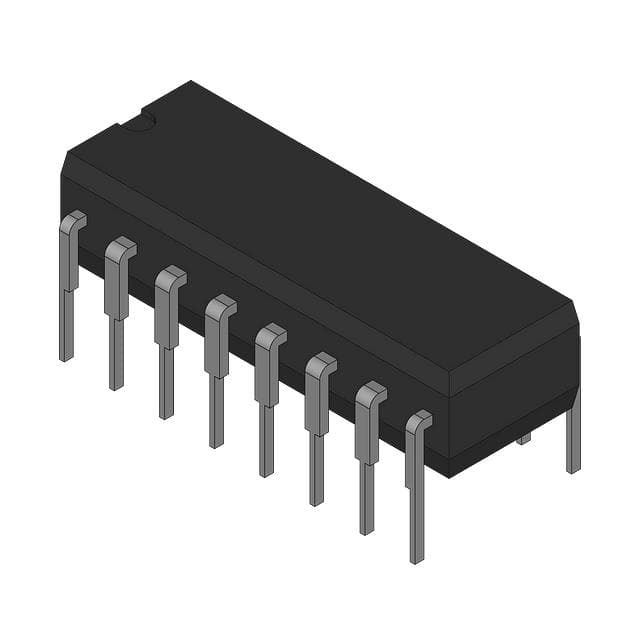

CD4044BE

SKU: 145615

Manufacturer: Texas Instruments

Latch Transparent 3-ST 4-CH SR-Type 16-Pin PDIP Tube

240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	SR-Type
Logic Family	CD4000
Latch Mode	Transparent
Number of Channels per Chip	4
Number of Elements per pcs	1
Number of Inputs per Chip	8
Number of Input Enables per Element	0
Number of Selection Inputs per Element	0
Number of Outputs per Chip	4
Number of Output Enables per Element	1
Bus Hold	No
Set/Reset	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	300@5V
Absolute Propagation Delay Time (ns)	300
Process Technology	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.04
Maximum Quiescent Current (uA)	20
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Pin Count	16
Original Package	PDIP
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	16
