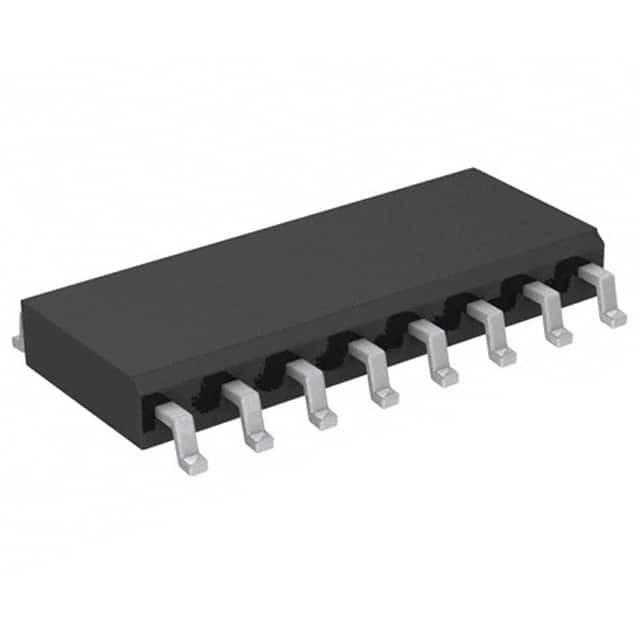

CD4042BDR Texas Instruments

CD4042BDR

SKU: 32435

Manufacturer: Texas Instruments

Latch Transparent 4-CH D-Type 16-Pin SOIC T/R

Request Free Samples

39900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	D-Type
Logic Family	CD4000
Latch Mode	Transparent
Number of Channels per Chip	4
Number of Elements per pcs	1
Number of Inputs per Chip	4
Number of Input Enables per Element	2 (CLK, Polarity)
Number of Selection Inputs per Element	0
Number of Outputs per Chip	4
Number of Output Enables per Element	0
Bus Hold	No
Set/Reset	No
Polarity	Inverting/Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	100@15V
Absolute Propagation Delay Time (ns)	500
Process Technology	CMOS
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.04
Maximum Quiescent Current (uA)	20
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tape and Reel
Pin Count	16
Original Package	SOIC
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16

Your name

Your email

Enquiry
