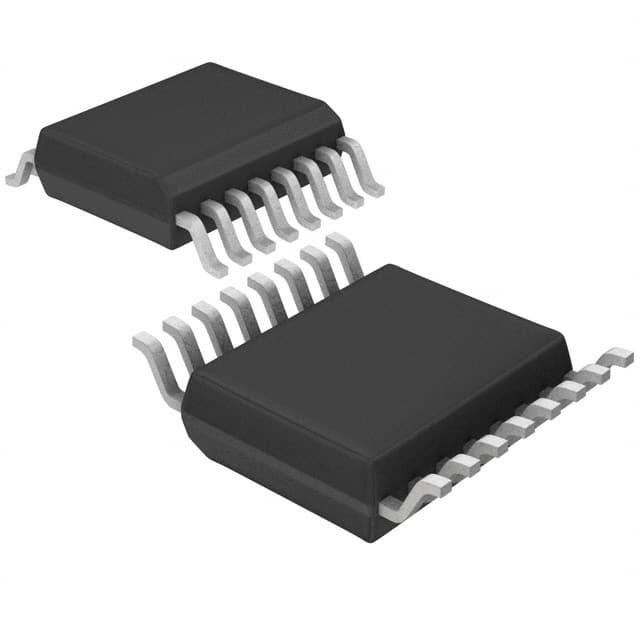

CD4022BPWR

SKU: 122151

Manufacturer: Texas Instruments

Counter/Divider Single 4-Bit Octal UP 16-Pin TSSOP T/R

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Octal
Logic Family	CD4000
Logic Function	Counter/Divider
Operation Mode	UP Counter
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	8
Number of Stages	4
Direction Type	Uni-Directional
Triggering Type	Positive-Edge/Negative-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	650@5V
Absolute Propagation Delay Time (ns)	650
Process Technology	CMOS
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	18
Maximum Quiescent Current (mA)	0.1
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	No
Terminal Count Output	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	16
Original Package	TSSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
