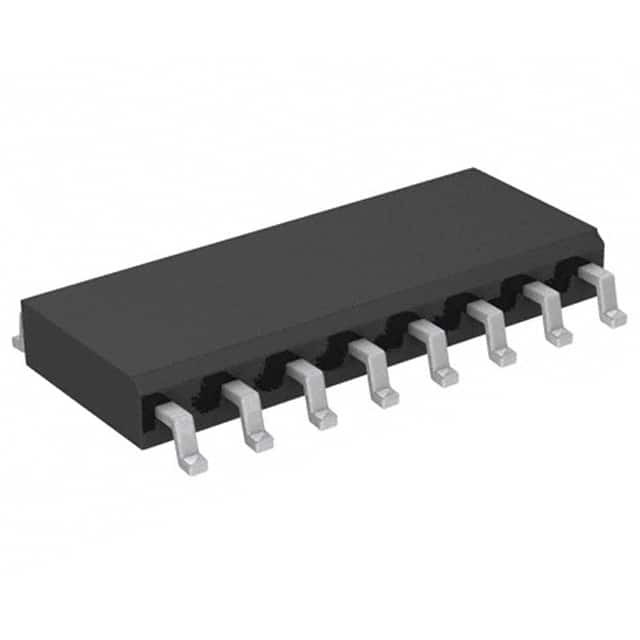

CD4019BM Texas Instruments

CD4019BM

SKU: 37301

Manufacturer: Texas Instruments

AND/OR Gate 4-Element 2-IN CMOS 16-Pin SOIC Tube

Request Free Samples

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	CD4000
Logic Function	AND/OR
Number of Elements per pcs	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	2
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	100@15V
Absolute Propagation Delay Time (ns)	300
Process Technology	CMOS
Output Type	Push-Pull
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	9
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.04
Maximum Quiescent Current (uA)	20
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Standard Package Method	SOP
Pin Count	16
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16
