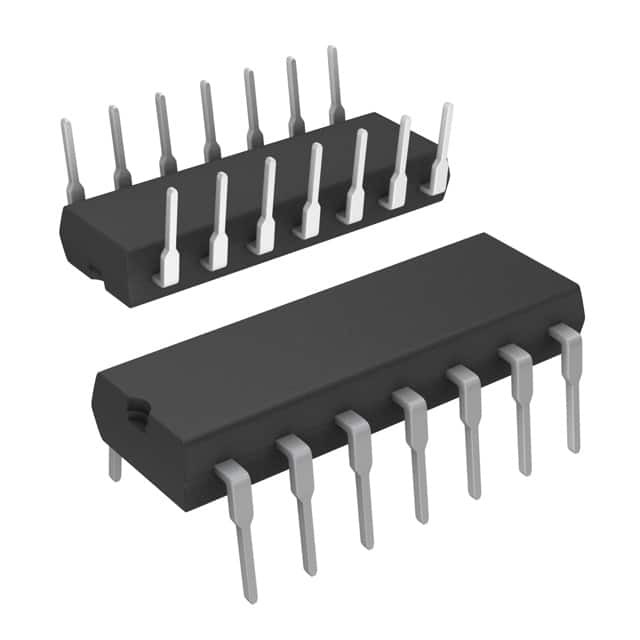

CD4016BE

SKU: 46657

Manufacturer: Texas Instruments

Analog Switch Quad SPST 14-Pin PDIP Tube

52930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	100@5V
Maximum Turn-On Time (ns)	70@5V
Maximum Frequency (25°C) @ Vcc (MHz)	40(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	18
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±9
Maximum On Resistance (Ohm)	2000@10V
Maximum On Resistance Range (Ohm)	>=1000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	PDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	14
