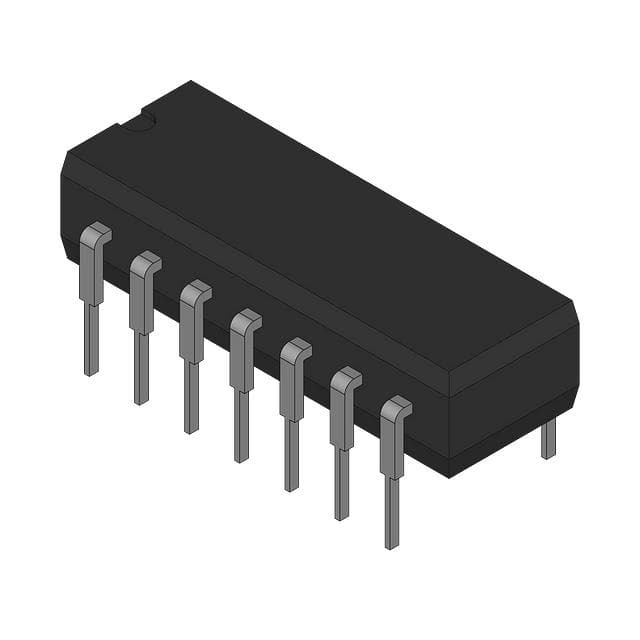

CD40106BE

SKU: 18346

Manufacturer: Texas Instruments

Inverter Schmitt Trigger 6-Element CMOS 14-Pin PDIP Tube

87710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	CD4000
Logic Function	Inverter Schmitt Trigger
Number of Elements per pcs	6
Maximum Propagation Delay Time @ Maximum CL (ns)	140@10V
Absolute Propagation Delay Time (ns)	280
Process Technology	CMOS
Output Type	Schmitt Trigger
Maximum Low Level Output Current (mA)	4.2(Min)
Maximum High Level Output Current (mA)	-4.2(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	9
Operating Supply Voltage-Max (V)	18
Typical Quiescent Current (uA)	0.04
Maximum Quiescent Current (uA)	20
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Original Package	PDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	14
