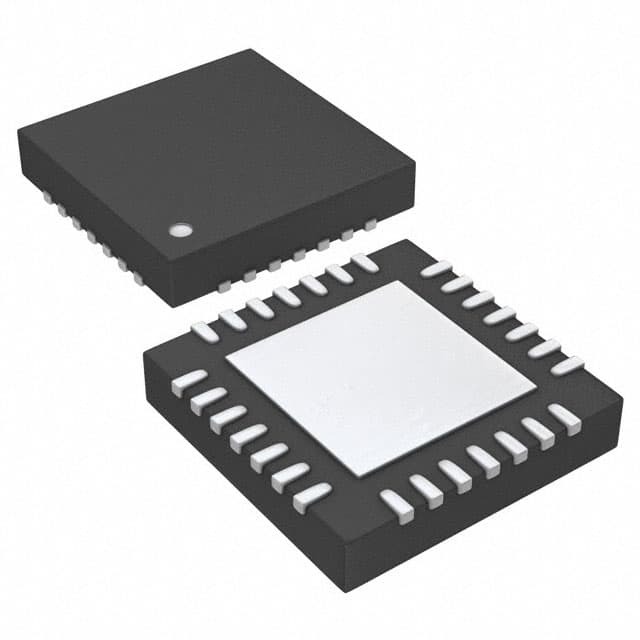

CC2520RHDR

SKU: 32420

Manufacturer: Texas Instruments

802.15.4 2507MHz 250Kbps 28-Pin VQFN EP T/R

11490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Module/IC Classification	IC
Modulation Technique	OQPSK
Solutions	ISM
RAM Size (KB)	0.75
Number of Channels	2
Internal Antenna Type	PCB
External Antenna Connector Type	SMA
Maximum Data Rate (Kbps)	250
Minimum Operating Frequency (MHz)	2394
Maximum Operating Frequency (MHz)	2507
ISM Band	2.4GHz
Typical Sensitivity	-98dBm
Protocol Stack	802.15.4
Interface	SPI
Maximum Output Power	5dBm
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.8
Maximum Current Consumption (RX) (mA)	26.3
Maximum Current Consumption (TX) (mA)	37.5
Outdoor Range	400m
Antenna Terminal Form	External/On Board
Application	Wireless Sensor Network
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Standard Package Method	QFN
Pin Count	28
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.15(Max)
Package Width	5.15(Max)
PCB changed	28
