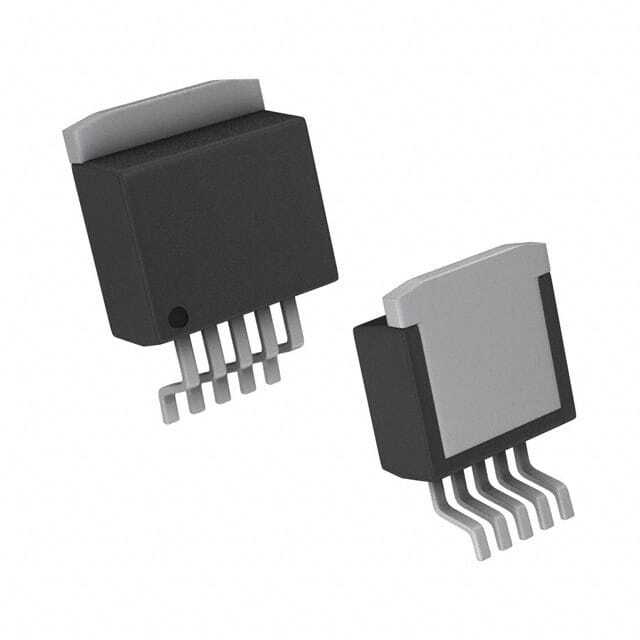

BUF634F

SKU: 25210

Manufacturer: Texas Instruments

Op Amp Single GP ±18V/36V 6-Pin(5+Tab) DDPAK

100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	100@±15V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	30
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	20@±15V
Typical Output Current (mA)	250@±15V
Power Supply Type	Single
Typical Slew Rate (V/us)	2000@±15V
Typical Input Noise Voltage Density (nV/rtHz)	4@±15V
Typical Voltage Gain (dB)	0.087
Typical Settling Time (ns)	200
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	DDPAK
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	5
Tab	Tab
