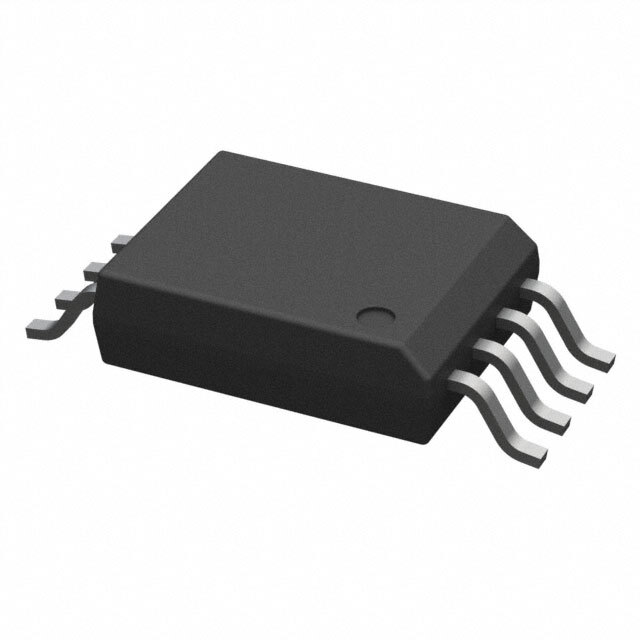

AMC1100DWV

SKU: 129072

Manufacturer: Texas Instruments

SP Amp DIFF AMP Single 5.5V 8-Pin SOIC Tube

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	8(Typ)
Minimum CMRR Range (dB)	95 to 105
Minimum CMRR (dB)	95(Typ)
Minimum PSRR (dB)	61(Typ)
Maximum Input Offset Voltage (mV)	0.2(Typ)@3.3V/5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Dual Supply Voltage (V)	4.5
Typical Dual Supply Voltage (V)	5
Maximum Dual Supply Voltage (V)	5.5
Maximum Supply Current (mA)	8@5V/7@5.5V
Maximum Input Resistance (MOhm)	0.028(Typ)@3.3V/5V
Maximum Power Dissipation (mW)	44
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Power Supply Type	Dual
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.29
Package Length	5.95(Max)
Package Width	7.6(Max)
PCB changed	8
