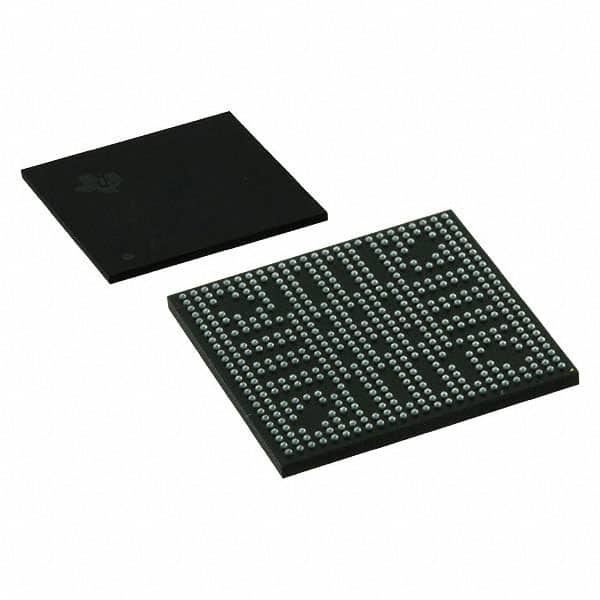

AM3505AZCN

SKU: 74341

Manufacturer: Texas Instruments

MPU AM35x RISC 32bit 65nm 600MHz 1.8V/3.3V 491-Pin NFBGA Tray

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	AM35x
Instruction Set Architecture	RISC
Device Core	ARM Cortex A8
Core Architecture	ARM
Number of CPU Cores	1
Data Bus Width (bit)	32
Instruction Cache Size	16KB
On-Chip Memory	64KB/SRAM
Maximum Speed (MHz)	600
Interface Type	CAN/Ethernet/I2C/SPI/UART/USB
UART	4
USART	0
Data Cache Size	16KB
USB	4
Multiply Accumulate	No
SPI	4
I2C	3
I2S	0
CAN	1
Memory Card Interface	MMC/SD
Ethernet	1
Ethernet Speed	10Mbps/100Mbps
Operating Supply Voltage-Min (V)	1.152
Typical Operating Supply Voltage (V)	1.2
Operating Supply Voltage-Max (V)	1.248
I/O Voltage (V)	1.8
Operating Temperature-Min	0
Operating Temperature-Max	90
Supplier Temperature Grade	Commercial
Packing Method	Tray
Original Package	NFBGA
Pin Count	491
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	17.1(Max)
Package Width	17.1(Max)
PCB changed	491
