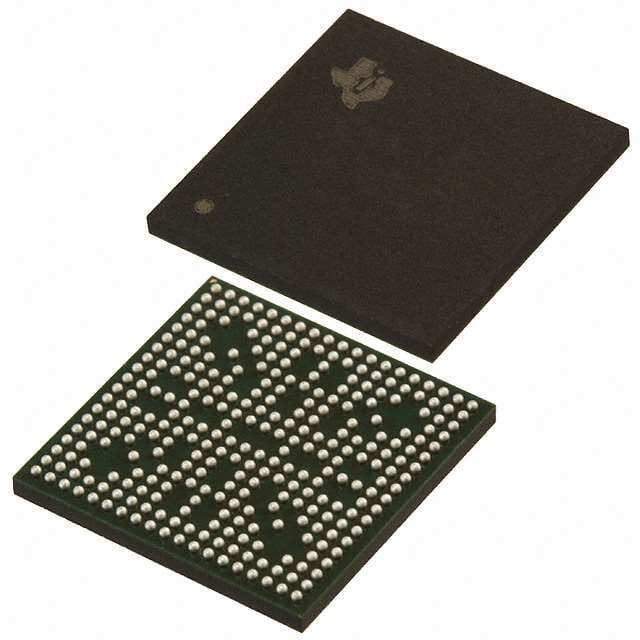

AM3351BZCE60

SKU: 152262

Manufacturer: Texas Instruments

MPU AM335x RISC 32bit 600MHz 1.8V/3.3V Automotive 298-Pin NFBGA

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	AM335x
Instruction Set Architecture	RISC
Device Core	ARM Cortex A8
Core Architecture	ARM
Number of CPU Cores	1
Data Bus Width (bit)	32
Instruction Cache Size	32KB
On-Chip Memory	64KB/RAM
Maximum Speed (MHz)	600
Interface Type	CAN/Ethernet/I2C/SPI/UART/USB
UART	6
USART	0
Data Cache Size	32KB
USB	1
Multiply Accumulate	No
SPI	2
I2C	3
I2S	0
CAN	2
Memory Card Interface	MMC/SD/SDIO
Ethernet	2
Ethernet Interface Type	MII/RMII/RGMII
Ethernet Speed	10Mbps/100Mbps/1000Mbps
Operating Supply Voltage-Min (V)	0.91
Typical Operating Supply Voltage (V)	0.95
Operating Supply Voltage-Max (V)	0.988
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	90
Supplier Temperature Grade	Commercial
Original Package	NFBGA
Pin Count	298
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.94(Max)
Package Length	13.1(Max)
Package Width	13.1(Max)
PCB changed	298
