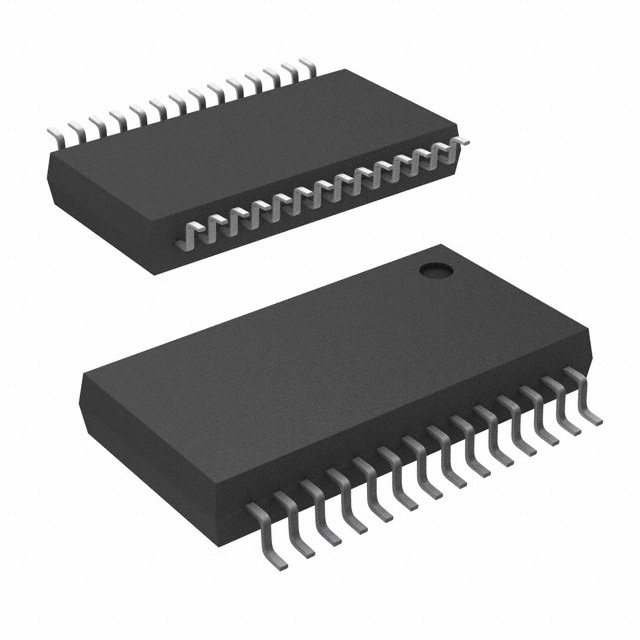

ADS930E/1KG4

SKU: 136169

Manufacturer: Texas Instruments

1-Channel Single ADC Pipelined 30Msps 8-bit Parallel 28-Pin SSOP T/R

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	30Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	1.75V/2V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	66
Maximum Power Dissipation (mW)	84
Integral Nonlinearity Error	±2.5LSB
Full Scale Error	10%FSR
Signal to Noise Ratio	46dB(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	28
