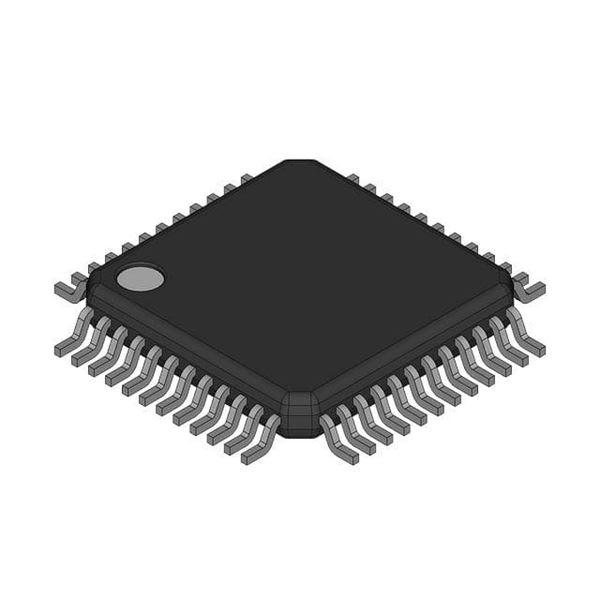

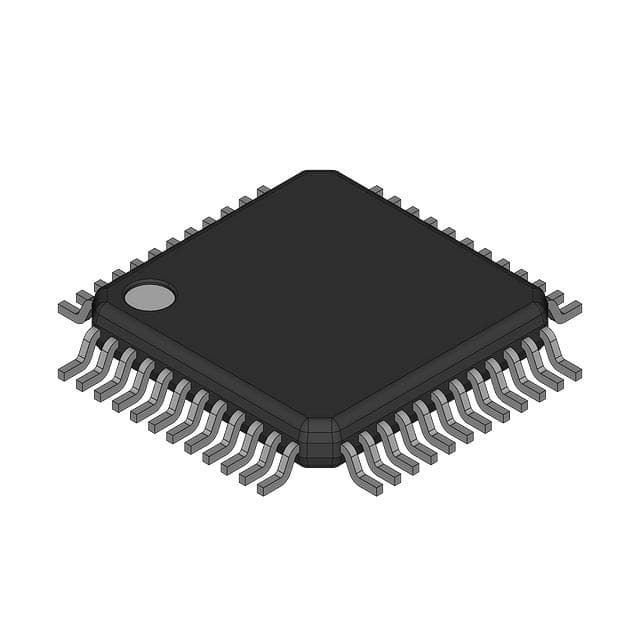

ADS850Y/2K

SKU: 22931

Manufacturer: Texas Instruments

1-Channel Single ADC Pipelined 10Msps 14-bit Parallel 48-Pin TQFP T/R

810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	CMOS
Architecture	Pipelined
Resolution	14bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	10Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	4.5V
Minimum Single Supply Voltage (V)	4.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.3
Typical Power Dissipation (mW)	255
Maximum Power Dissipation (mW)	275
Integral Nonlinearity Error	±5LSB
Full Scale Error	±0.7%FSR(Typ)
Signal to Noise Ratio	76dBFS(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.2(Max)
Package Width	7.2(Max)
PCB changed	48
