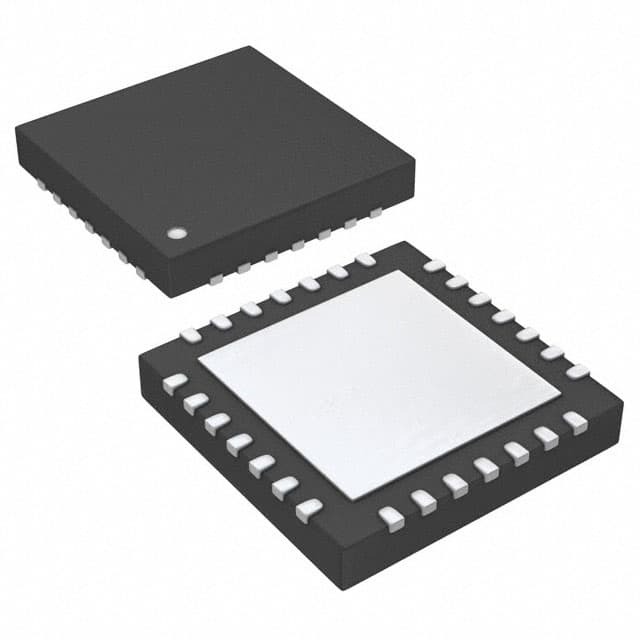

ADS8380IRHPT

SKU: 51374

Manufacturer: Texas Instruments

1-Channel Single ADC SAR 600ksps 18-bit Serial 28-Pin VQFN EP T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	18bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	600ksps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	4.2V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	115
Integral Nonlinearity Error	±6LSB
Full Scale Error	±0.1%FSR
Signal to Noise Ratio	91dB(Typ)
No Missing Codes (bit)	17
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	28
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.9
Package Length	6
Package Width	6
PCB changed	28
