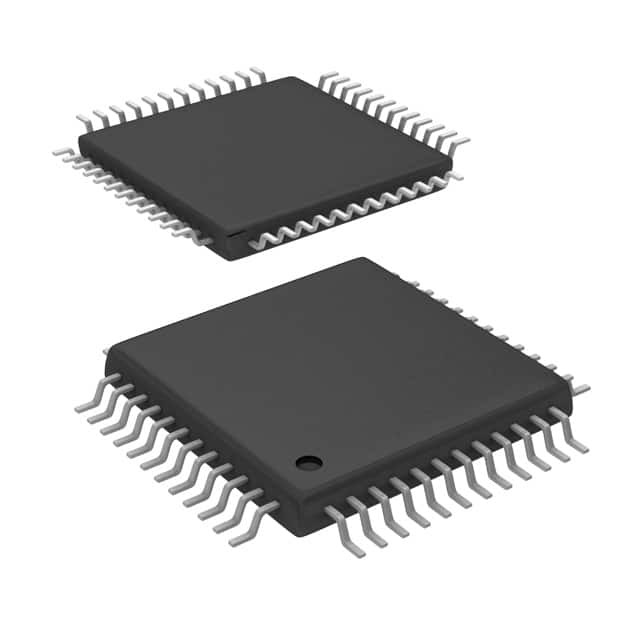

ADS8342IBPFBT

SKU: 74280

Manufacturer: Texas Instruments

4-Channel Single ADC SAR 250ksps 16-bit Parallel 48-Pin TQFP T/R

1190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	250ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±2.5V
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.25
Typical Power Dissipation (mW)	208
Maximum Power Dissipation (mW)	250
Integral Nonlinearity Error	±4LSB
Full Scale Error	±0.25%FSR
Signal to Noise Ratio	86dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.2(Max)
Package Width	7.2(Max)
PCB changed	48
