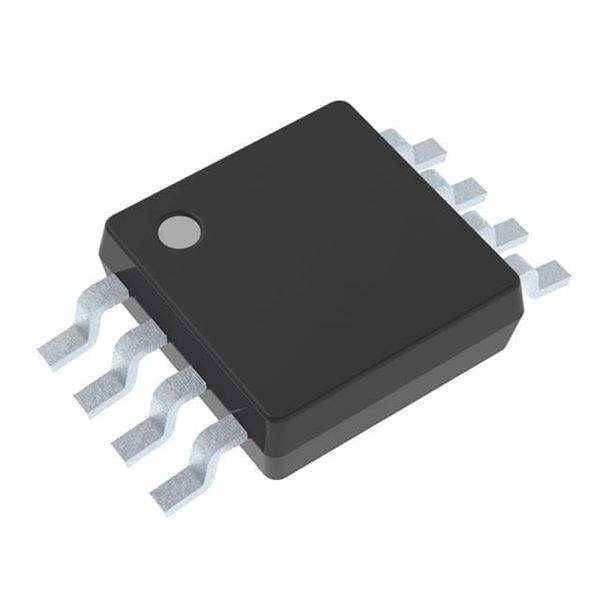

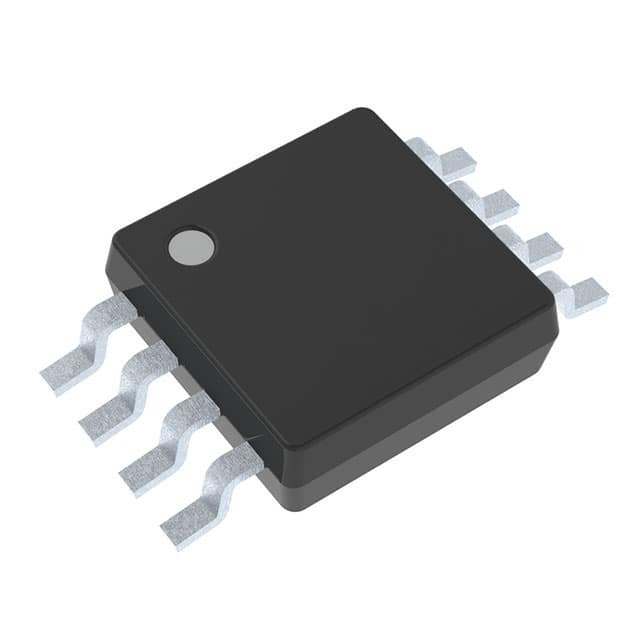

ADS8324E/2K5

SKU: 72450

Manufacturer: Texas Instruments

1-Channel Single ADC SAR 50ksps 14-bit Serial 8-Pin VSSOP T/R

8730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	14bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	50ksps
Digital Interface Type	Serial (3-Wire, SPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±0.9V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	2.5
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	2.5
Maximum Power Dissipation (mW)	3
Integral Nonlinearity Error	±3LSB
Full Scale Error	±8LSB
Signal to Noise Ratio	78dB(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
