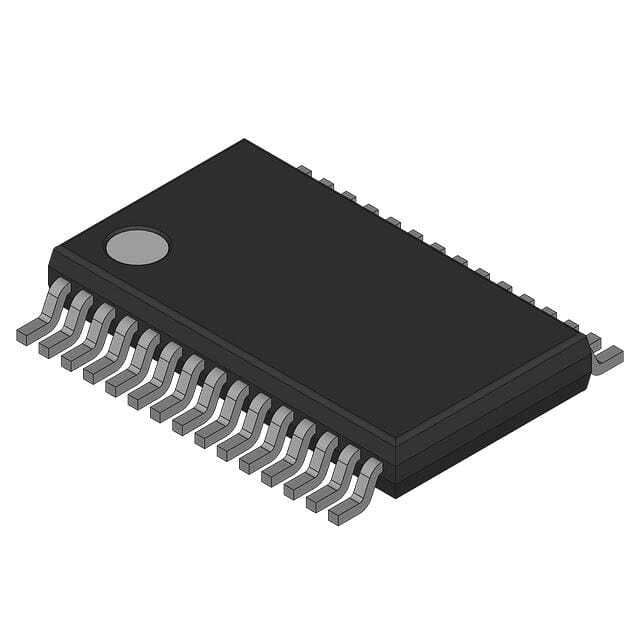

ADS7959SDBT

SKU: 72449

Manufacturer: Texas Instruments

8-Channel Single ADC SAR 1Msps 8-bit Serial 30-Pin TSSOP Tube

4020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	1Msps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	2.5V/5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	14.5
Integral Nonlinearity Error	±0.3LSB
Full Scale Error	±0.6LSB
Signal to Noise Ratio	49dB(Min)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	30
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.9(Max)
Package Width	4.5(Max)
PCB changed	30
