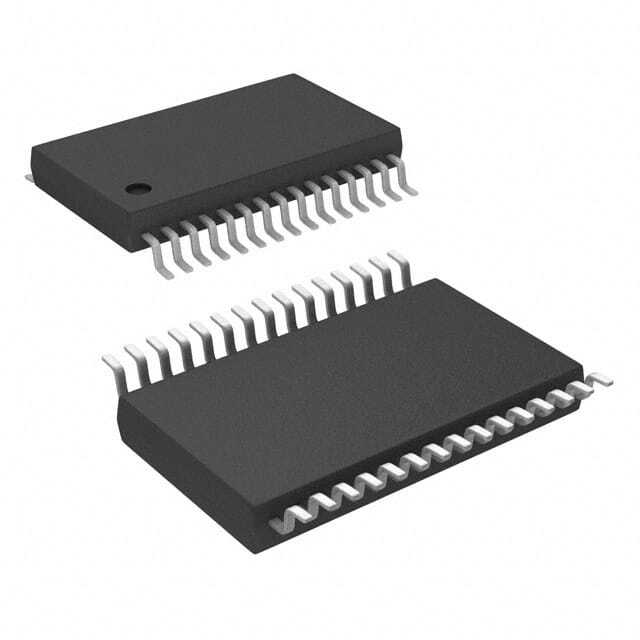

ADS7950SDBTR

SKU: 130932

Manufacturer: Texas Instruments

4-Channel Single ADC SAR 1Msps 12-bit Serial 30-Pin TSSOP T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	1Msps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	2.5V/5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	14.5
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	±2LSB
Signal to Noise Ratio	71.7dB(Typ)
No Missing Codes (bit)	11
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	30
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.9(Max)
Package Width	4.5(Max)
PCB changed	30
