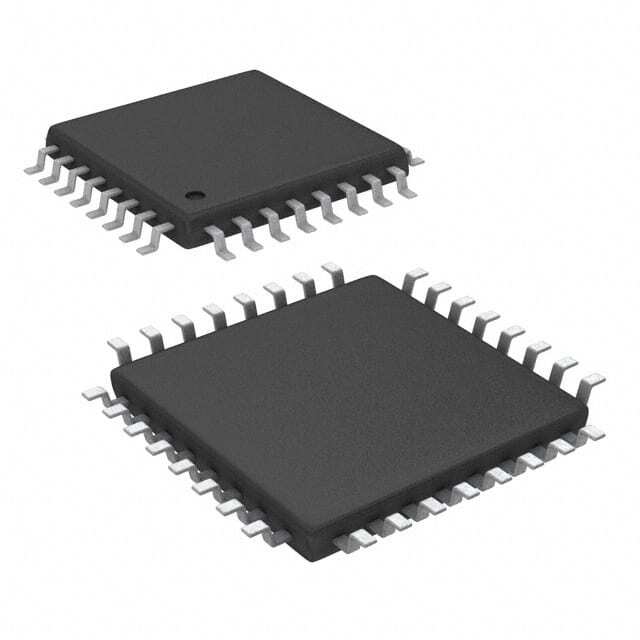

ADS7865IPBS

SKU: 88332

Manufacturer: Texas Instruments

6-Channel Dual ADC SAR 2Msps 12-bit Parallel 32-Pin TQFP Tray

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	2
Number of Input Channels	4
Sampling Rate	2Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	30.6
Maximum Power Dissipation (mW)	44
Integral Nonlinearity Error	±1.25LSB
Full Scale Error	±0.6%FSR
Signal to Noise Ratio	71.7dB(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Supplier Temperature Grade	Extended
Pin Count	32
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	5
PCB changed	32
