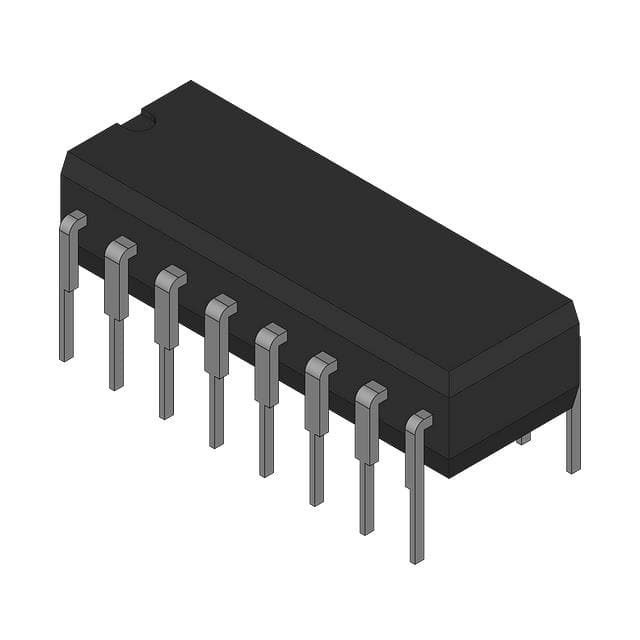

ADS7812PB

SKU: 114865

Manufacturer: Texas Instruments

3-Channel Single ADC SAR 40ksps 12-bit Serial 16-Pin PDIP Tube

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	3
Sampling Rate	40ksps
Digital Interface Type	Serial (SPI, QSPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	4V/10V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Power Dissipation (mW)	35
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±0.25%FSR
Signal to Noise Ratio	74dB(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	19.69(Max)
Package Width	6.6(Max)
PCB changed	16
