ADS7809UB/1KE4

SKU: 157466

Manufacturer: Texas Instruments

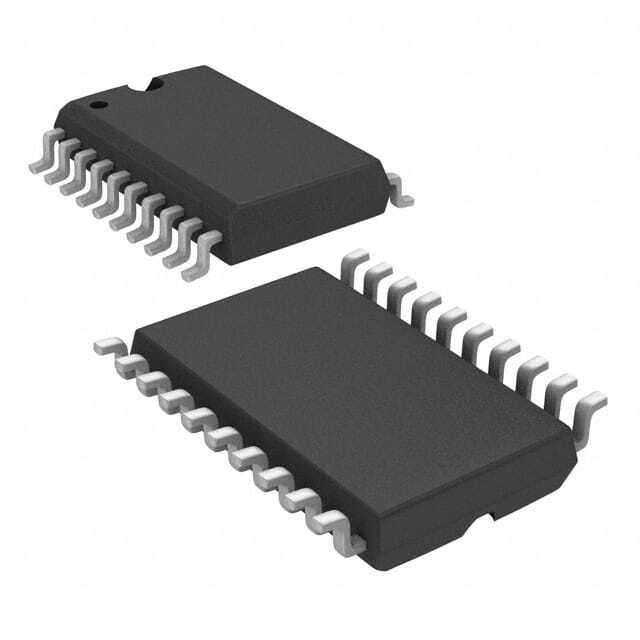

1-Channel Single ADC SAR 100ksps 16-bit Serial 20-Pin SOIC T/R

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	100ksps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	4V/5V/10V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Power Dissipation (mW)	100
Integral Nonlinearity Error	±2LSB
Full Scale Error	±0.5%FSR
Signal to Noise Ratio	88dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
