ADS7800JU/1KG4

SKU: 150371

Manufacturer: Texas Instruments

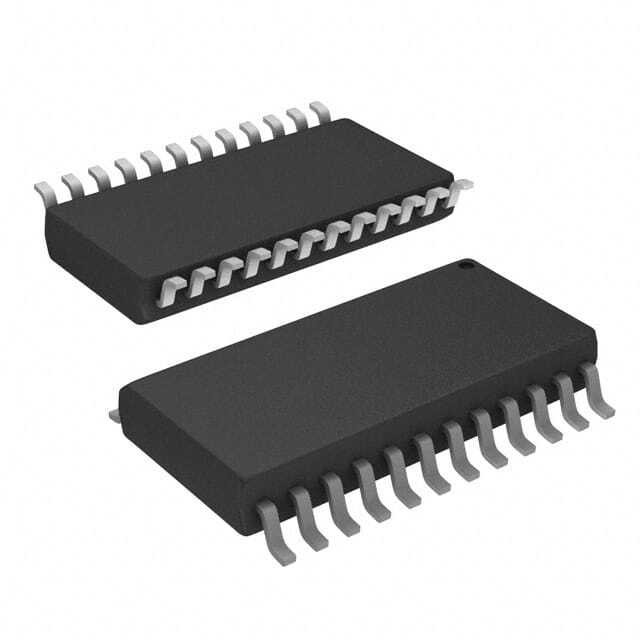

1-Channel Single ADC SAR 333ksps 12-bit Parallel 24-Pin SOIC T/R

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	333ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±5V/±10V
Minimum Dual Supply Voltage (V)	-11.4/4.75
Typical Dual Supply Voltage (V)	-15/5
Maximum Dual Supply Voltage (V)	-16.5/5.25
Maximum Power Dissipation (mW)	215
Integral Nonlinearity Error	±1LSB
Full Scale Error	±0.5%FSR
Signal to Noise Ratio	71dB(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
