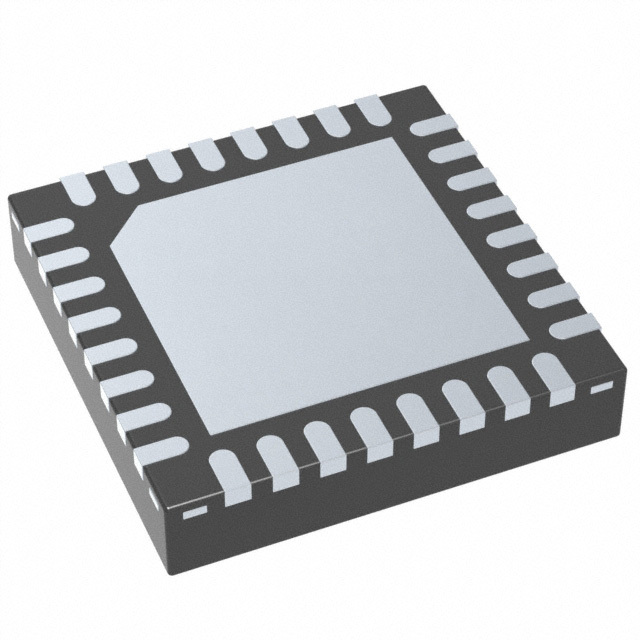

ADS6122IRHBR

SKU: 136162

Manufacturer: Texas Instruments

1-Channel Single ADC Pipelined 65Msps 12-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R

4420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	65Msps
Digital Interface Type	Serial (3-Wire)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	2Vp-p
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	285
Maximum Power Dissipation (mW)	400
Integral Nonlinearity Error	±2LSB
Full Scale Error	±1%FSR
Signal to Noise Ratio	71.8dBFS(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	32
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.15(Max)
Package Width	5.15(Max)
PCB changed	32
