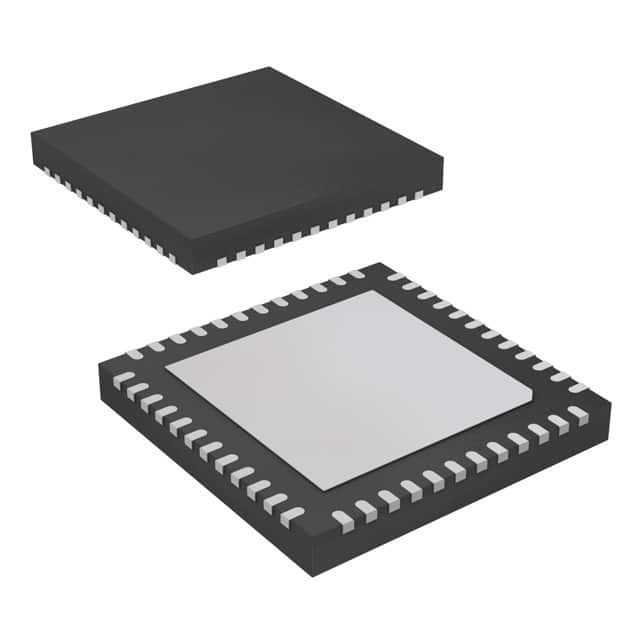

ADS5560IRGZR

SKU: 150369

Manufacturer: Texas Instruments

1-Channel Single ADC Pipelined 40Msps 16-bit Parallel 48-Pin VQFN EP T/R

3450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991C4
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	40Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	3.56Vp-p
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	674
Maximum Power Dissipation (mW)	810
Integral Nonlinearity Error	±8.5LSB
Full Scale Error	±2.5%FSR
Signal to Noise Ratio	84.3dBFS(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	48
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	7.15(Max)
Package Width	7.15(Max)
PCB changed	48
