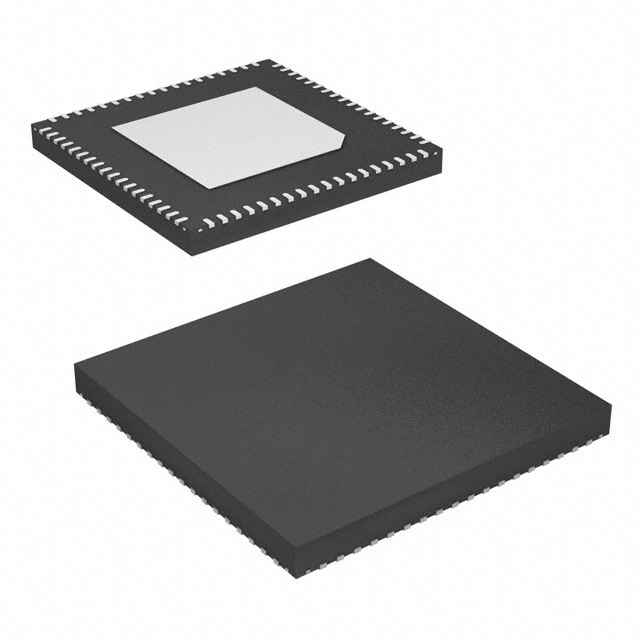

ADS54J69IRMP

SKU: 129032

Manufacturer: Texas Instruments

2-Channel Dual ADC Pipelined 500Msps 16-bit JESD204B 72-Pin VQFN EP Tray

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001A5A5
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	16bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	500Msps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Voltage Supply Source	Analog and Digital
Input Voltage	1.9Vp-p
Minimum Single Supply Voltage (V)	1.8/2.85
Typical Single Supply Voltage (V)	1.9/3
Maximum Single Supply Voltage (V)	2/3.6
Typical Power Dissipation (mW)	2660
Maximum Power Dissipation (mW)	3100
Signal to Noise Ratio	74.2dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	VQFN EP
Pin Count	72
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	10.1(Max)
Package Width	10.1(Max)
PCB changed	72
