ADS54J20IRMP

SKU: 67242

Manufacturer: Texas Instruments

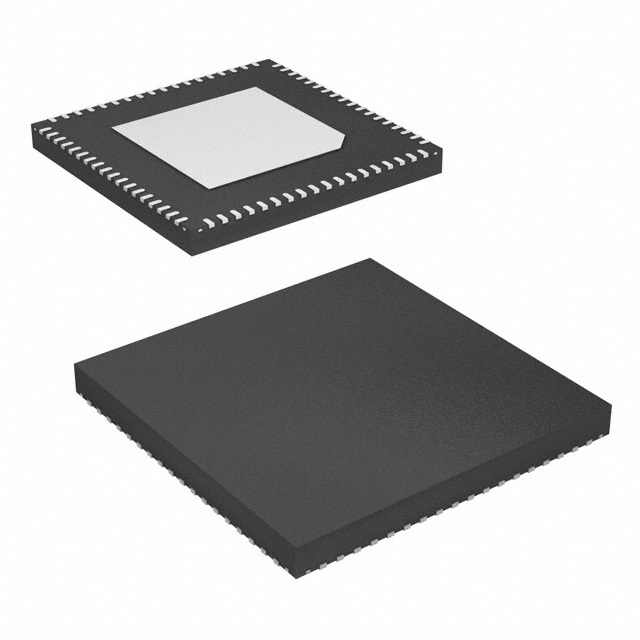

2-Channel Dual ADC Pipelined 1Gsps 12-bit JESD204B 72-Pin VQFN EP Tray

2990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.3.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	12bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	1Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	1.9Vp-p
Minimum Single Supply Voltage (V)	1.8/2.85
Typical Single Supply Voltage (V)	1.9/3
Maximum Single Supply Voltage (V)	2/3.6
Typical Power Dissipation (mW)	2710
Maximum Power Dissipation (mW)	3100
Signal to Noise Ratio	68.4dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	VQFN EP
Pin Count	72
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	10.1(Max)
Package Width	10.1(Max)
PCB changed	72

Your name

Your email

Enquiry
