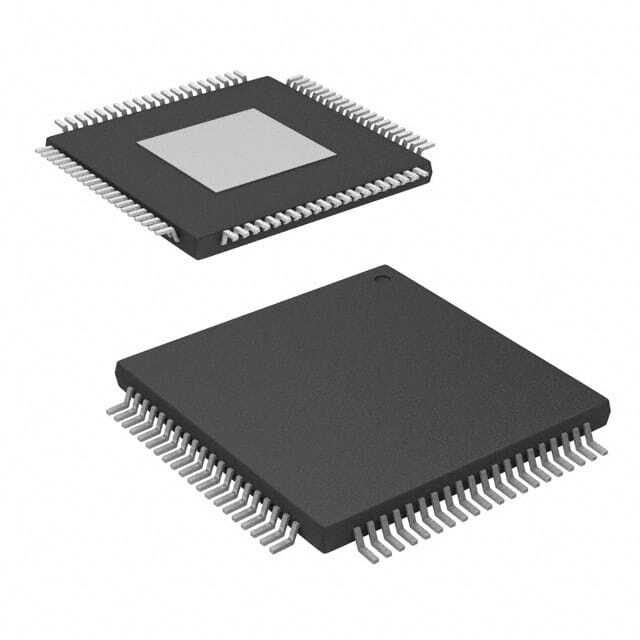

ADS5474IPFPR

SKU: 37132

Manufacturer: Texas Instruments

1-Channel Single ADC Pipelined 400Msps 14-bit Parallel 80-Pin HTQFP EP T/R

4070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.5.a.4
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	400Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	2.2Vp-p
Minimum Single Supply Voltage (V)	3.1/4.75
Typical Single Supply Voltage (V)	3.3/5
Maximum Single Supply Voltage (V)	3.6/5.25
Typical Power Dissipation (mW)	2500
Maximum Power Dissipation (mW)	2797
Integral Nonlinearity Error	±3LSB
Full Scale Error	±5%FSR
Signal to Noise Ratio	70.3dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	80
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.2(Max)
Package Width	12.2(Max)
PCB changed	80
