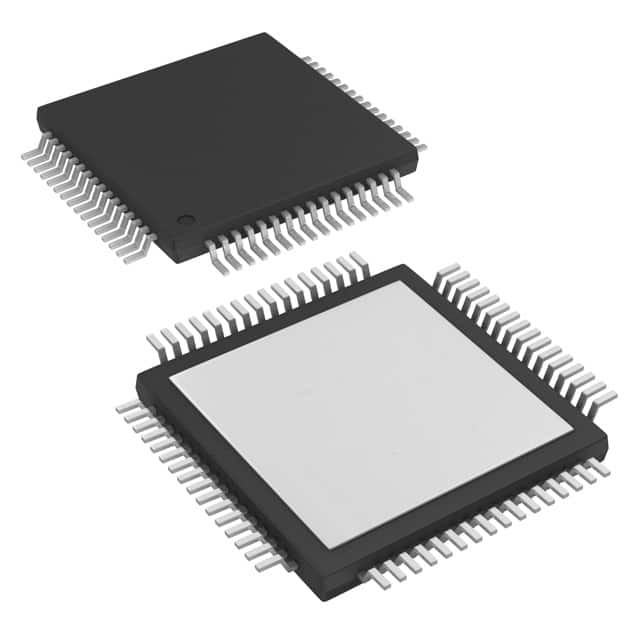

ADS1626IPAPT

SKU: 150365

Manufacturer: Texas Instruments

1-Channel Single ADC Delta-Sigma 1.25Msps 18-bit Parallel 64-Pin HTQFP EP T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	18bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	1.25Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	±4.4V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	515
Maximum Power Dissipation (mW)	645
Integral Nonlinearity Error	3.5LSB(Typ)
Full Scale Error	0.25%FSR(Typ)
Signal to Noise Ratio	93dB(Typ)
No Missing Codes (bit)	18
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
