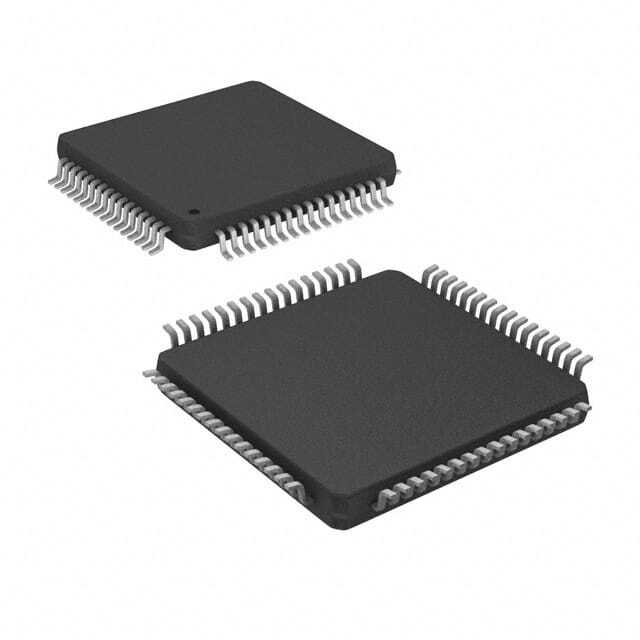

ADS131E04IPAG

SKU: 109538

Manufacturer: Texas Instruments

8-Channel Quad ADC Delta-Sigma 64ksps 24-bit Serial 64-Pin TQFP Tray

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	4
Number of Input Channels	8
Sampling Rate	64ksps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	±2.5V/±4V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current	5.8(Typ)
Typical Power Dissipation (mW)	9.3
Maximum Power Dissipation (mW)	10.2
Integral Nonlinearity Error	10ppm(Typ)
Full Scale Error	0.1%FSR(Typ)
Signal to Noise Ratio	107dB(Typ)
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Supplier Temperature Grade	Industrial
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
