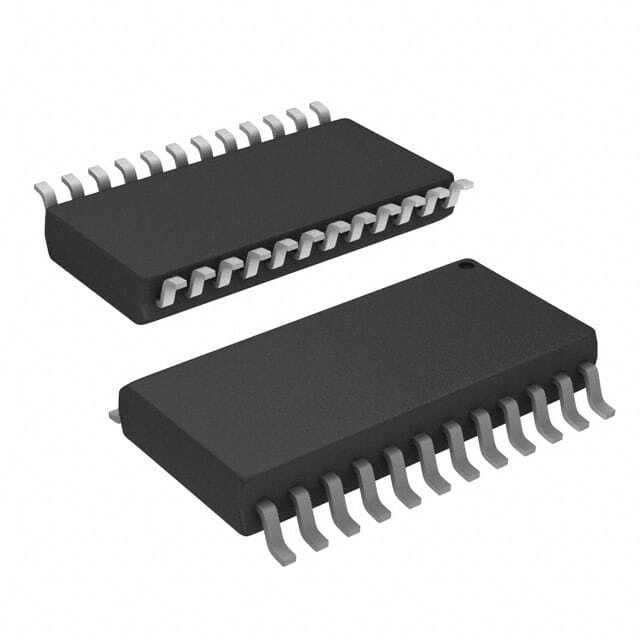

ADS1213U/1KG4

SKU: 143263

Manufacturer: Texas Instruments

4-Channel Single ADC Delta-Sigma 6.25ksps 22-bit Serial 24-Pin SOIC T/R

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	22bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	6.25ksps
Digital Interface Type	Serial (2-Wire, 3-Wire, 4-Wire, SPI)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Analog and Digital
Input Voltage	5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	6
Maximum Power Dissipation (mW)	8.5
Integral Nonlinearity Error	±0.0015%FSR
No Missing Codes (bit)	22
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
