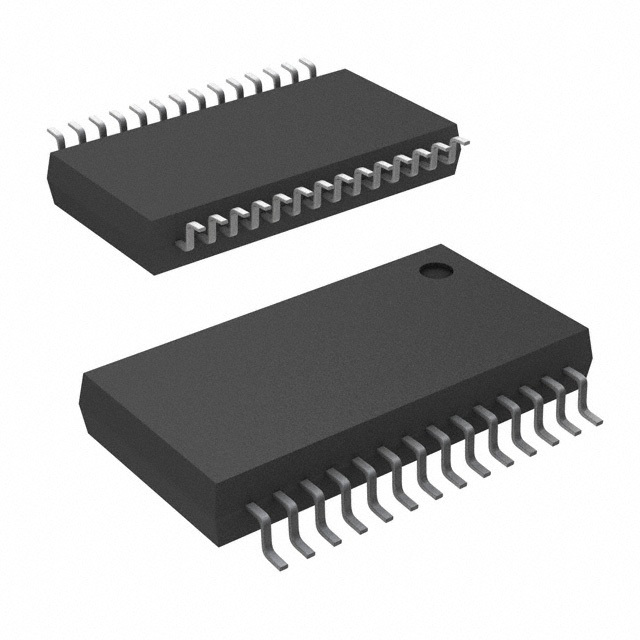

ADS1211E

SKU: 102501

Manufacturer: Texas Instruments

4-Channel Single ADC Delta-Sigma 16ksps 24-bit Serial 28-Pin SSOP Tube

3610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	1
Number of Input Channels	4
Sampling Rate	16ksps
Digital Interface Type	Serial (2-Wire, 3-Wire, 4-Wire, SPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Analog and Digital
Input Voltage	5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	37
Maximum Power Dissipation (mW)	60
Integral Nonlinearity Error	±0.0015%FSR
No Missing Codes (bit)	22
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	28
