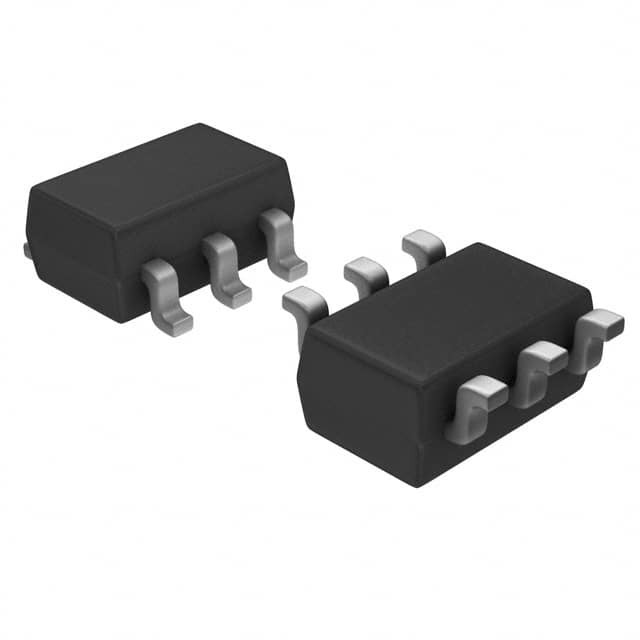

ADS1100A0IDBVR

SKU: 130904

Manufacturer: Texas Instruments

1-Channel Single ADC Delta-Sigma 128sps 16-bit Serial 6-Pin SOT-23 T/R

7720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Delta-Sigma
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	128sps
Digital Interface Type	Serial (2-Wire, I2C)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Supply
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	0.45
Maximum Power Dissipation (mW)	0.75
Integral Nonlinearity Error	±0.0125%FSR
Full Scale Error	0.1%FSR
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	6
