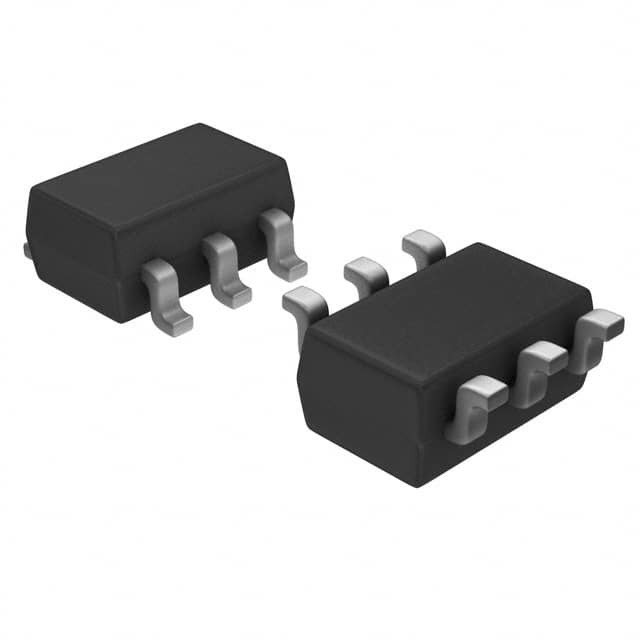

ADCS7478AIMF/NOPB

SKU: 15875

Manufacturer: Texas Instruments

1-Channel Single ADC SAR 1Msps 8-bit Serial Automotive 6-Pin SOT-23 T/R

4200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	1Msps
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Supply
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5.25V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Integral Nonlinearity Error	±0.3LSB
Full Scale Error	±0.4LSB
Signal to Noise Ratio	49.7dB(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended Industrial
Pin Count	6
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	6
