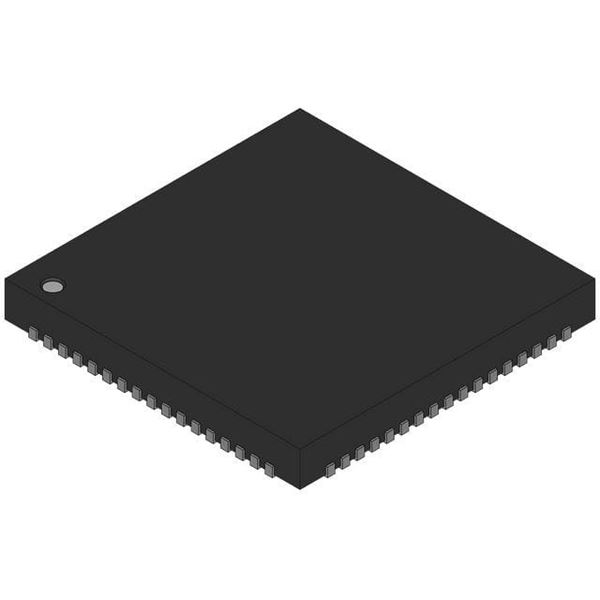

ADC12J4000NKE

SKU: 22887

Manufacturer: Texas Instruments

1-Channel Single ADC Folding/Interpolating 4Gsps 12-bit JESD204B 68-Pin VQFN EP Tray

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001A5A3
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Folding
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	4Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	0.725Vp-p
Minimum Single Supply Voltage (V)	1.14/1.8
Typical Single Supply Voltage (V)	1.2/1.9
Maximum Single Supply Voltage (V)	1.26/2
Integral Nonlinearity Error	±3LSB(Typ)
Signal to Noise Ratio	63.3dBFS(Typ)
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Pin Count	68
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	10
Package Width	10
PCB changed	68
