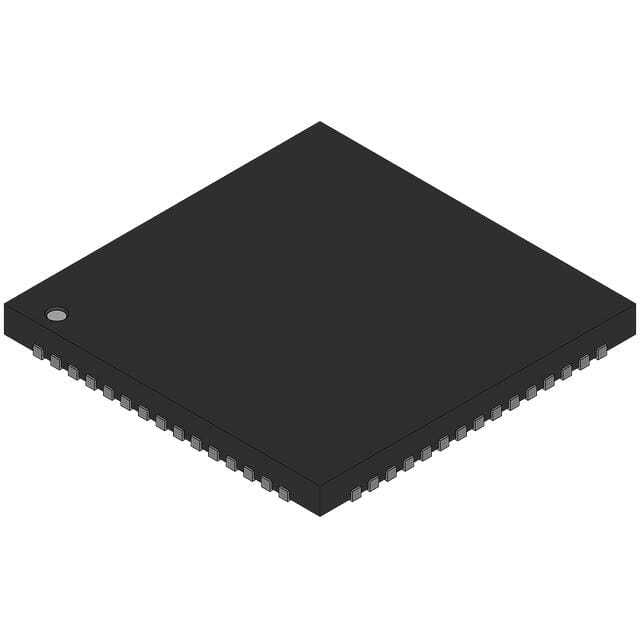

ADC12DS105CISQ/NOPB

SKU: 65395

Manufacturer: Texas Instruments

2-Channel Dual ADC Pipelined 125Msps 12-bit Serial 60-Pin WQFN EP T/R

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	CMOS
Architecture	Pipelined
Resolution	12bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	125Msps
Digital Interface Type	LVDS
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Voltage Supply Source	Single
Input Voltage	2Vp-p
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current	240(Typ)
Maximum Power Dissipation (mW)	1060
Integral Nonlinearity Error	±2LSB
Full Scale Error	±1%FSR
Signal to Noise Ratio	71dBFS(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	60
Standard Package Method	QFN
Original Package	WQFN EP
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	9
Package Width	9
PCB changed	60
