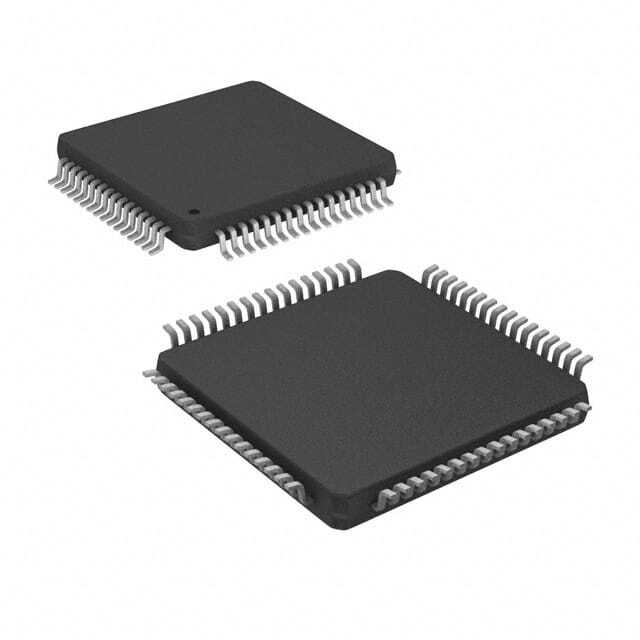

ADC12DL040CIVSX/NOPB

SKU: 128987

Manufacturer: Texas Instruments

2-Channel Dual ADC Pipelined 40Msps 12-bit Parallel 64-Pin TQFP T/R

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	12bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	40Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	2Vp-p
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	210
Integral Nonlinearity Error	±2.6LSB
Full Scale Error	±3.6%FSR
Signal to Noise Ratio	69dB(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Original Package	TQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
