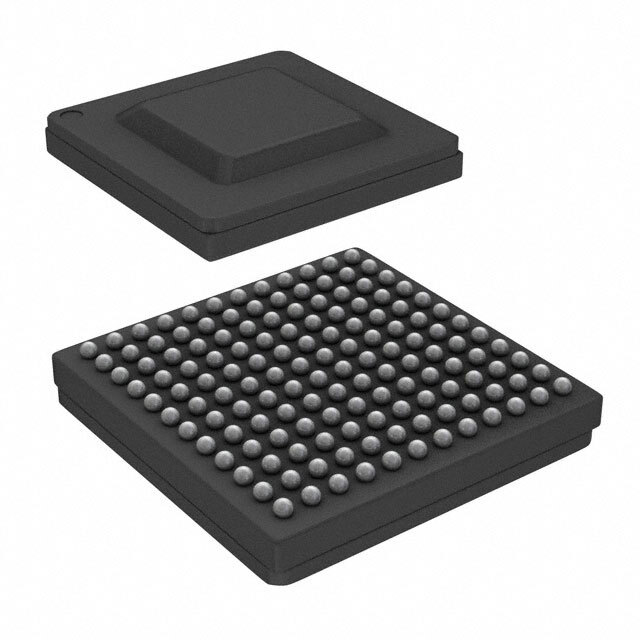

ADC12DJ2700AAV

SKU: 100650

Manufacturer: Texas Instruments

2-Channel Dual ADC Folding/Interpolating 5.4Gsps 12-bit JESD204B 144-Pin FCBGA Tray

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.3.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Folding
Resolution	12bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	5.4Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	0.48Vp-p/0.8Vp-p/1.04Vp-p
Minimum Single Supply Voltage (V)	1.05/1.8
Typical Single Supply Voltage (V)	1.1/1.9
Maximum Single Supply Voltage (V)	1.15/2
Typical Power Dissipation (mW)	2800
Maximum Power Dissipation (mW)	3500
Integral Nonlinearity Error	±2LSB(Typ)
Signal to Noise Ratio	57.6dBFS(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	FCBGA
Pin Count	144
Terminal Form	Surface Mount
Package Height	1.54(Max)
Package Length	10.15(Max)
Package Width	10.15(Max)
