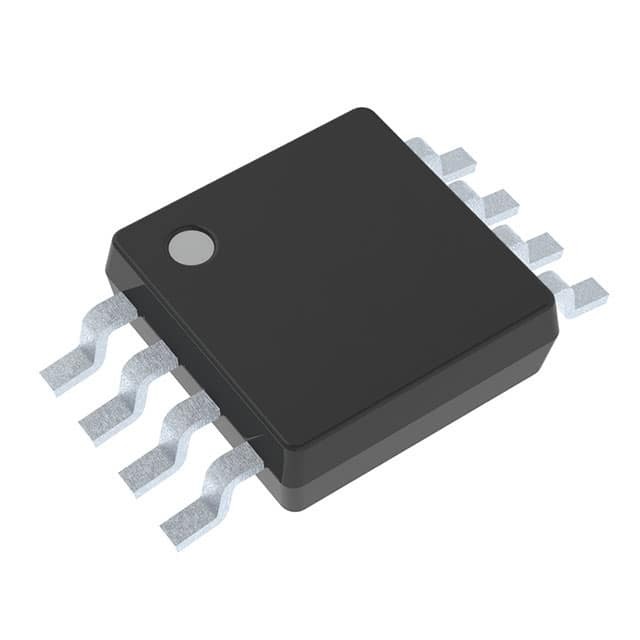

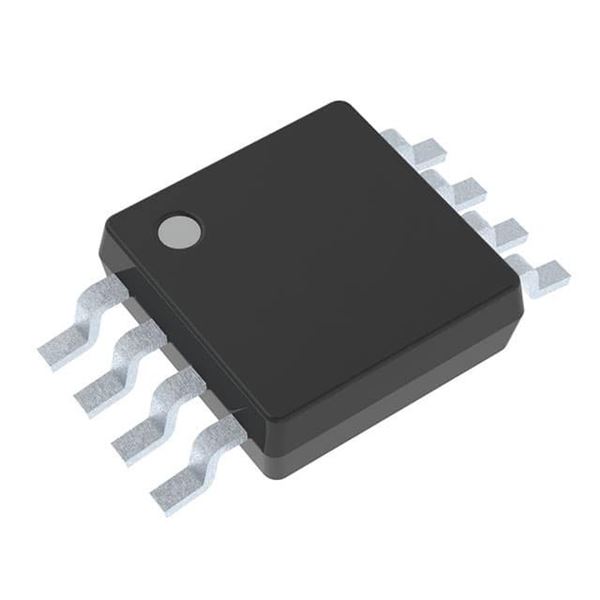

ADC122S051CIMM/NOPB

SKU: 10366

Manufacturer: Texas Instruments

2-Channel Single ADC SAR 500ksps 12-bit Serial 8-Pin VSSOP T/R

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	2
Sampling Rate	500ksps
Digital Interface Type	Serial (4-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Supply
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5.25V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Integral Nonlinearity Error	±1.1LSB
Full Scale Error	±1.5LSB
Signal to Noise Ratio	72.5dB(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Original Package	VSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
