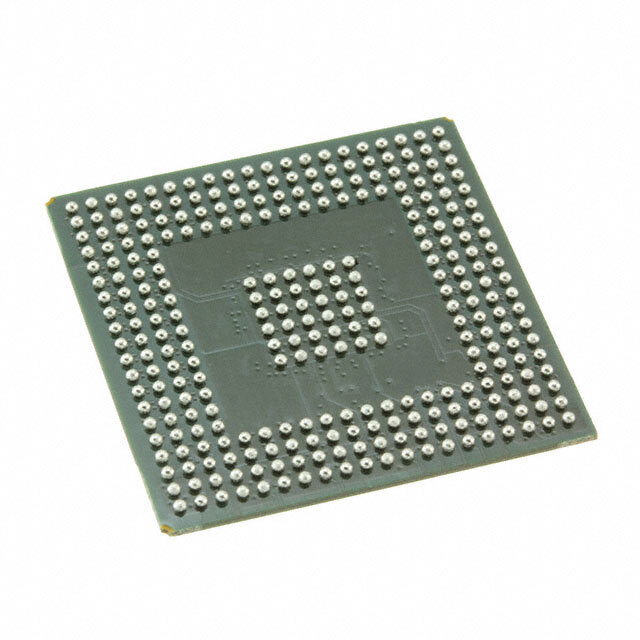

ADC10D1500CIUT/NOPB

SKU: 93531

Manufacturer: Texas Instruments

2-Channel Dual ADC Folding/Interpolating 3Gsps 10-bit Parallel/LVDS 292-Pin BGA Tray

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.5.a.2
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Folding
Resolution	10bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	3Gsps
Digital Interface Type	LVDS
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	0.6Vp-p/0.79Vp-p/0.98Vp-p
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	1.9
Maximum Single Supply Voltage (V)	2
Typical Power Dissipation (mW)	3590
Maximum Power Dissipation (mW)	4400
Integral Nonlinearity Error	±1.4LSB
Full Scale Error	±25mV
Signal to Noise Ratio	57dB(Typ)
No Missing Codes (bit)	10
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	BGA
Pin Count	292
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.78
Package Length	27
Package Width	27
PCB changed	292
