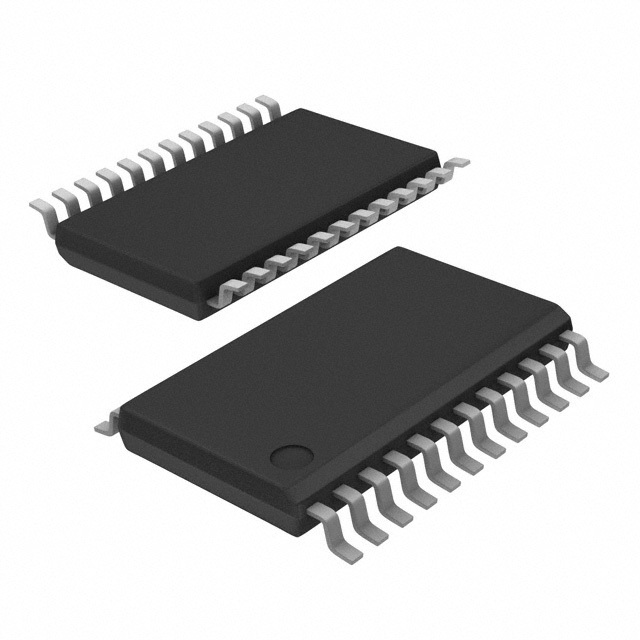

ADC08L060CIMTX/NOPB

SKU: 121954

Manufacturer: Texas Instruments

1-Channel Single ADC Pipelined 60Msps 8-bit Parallel 24-Pin TSSOP T/R

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	60Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	1.6V
Minimum Single Supply Voltage (V)	2.4
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Maximum Power Dissipation (mW)	63
Integral Nonlinearity Error	-1.35/1.9LSB
Full Scale Error	±13mV
Signal to Noise Ratio	48dB(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	24
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.9(Max)
Package Width	4.5(Max)
PCB changed	24
