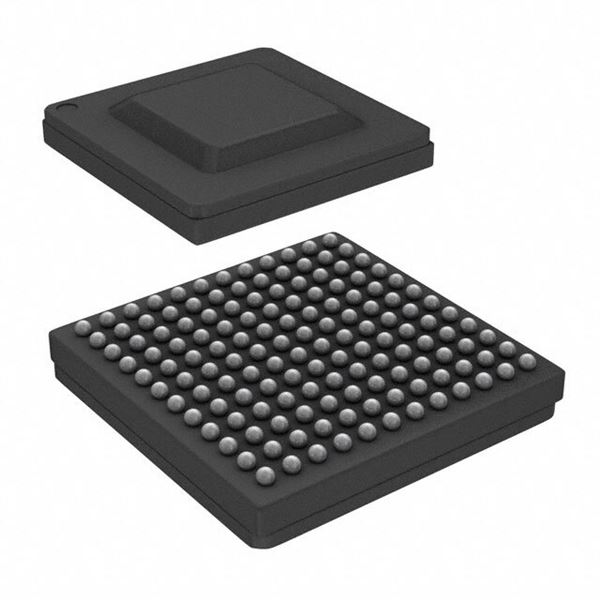

ADC08DJ3200AAV

SKU: 121955

Manufacturer: Texas Instruments

2-Channel Dual ADC Folding/Interpolating 6.4Gsps 8-bit JESD204B 144-Pin FCBGA Tray

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001A5A1
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Folding
Resolution	8bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	6.4Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	0.8Vp-p
Minimum Single Supply Voltage (V)	1.05/1.8
Typical Single Supply Voltage (V)	1.1/1.9
Maximum Single Supply Voltage (V)	1.15/2
Typical Power Dissipation (mW)	2800
Maximum Power Dissipation (mW)	3200
Integral Nonlinearity Error	±0.3LSB(Typ)
Signal to Noise Ratio	49.4dBFS(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	FCBGA
Pin Count	144
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.54(Max)
Package Length	10.15(Max)
Package Width	10.15(Max)
PCB changed	144
